Name: Fuel Pressure Gauge Kit
Brand: Pensacola Diesel
SKU: PFI-4009
Availability: InStock

Description

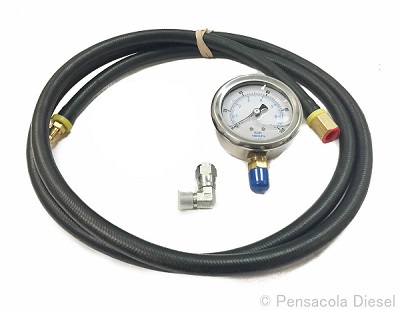

Universal Fuel Pressure Gauge Kit

Use Fuel Pressure Tester Kit to diagnose driveability problems caused by poor fuel pressure.

Measure the available fuel pressure with engine running on or off.

Features:

100 PSI / 1-7 BAR (100xkPa) Gauge
8′ Hose with 1/8 NPT (Fuel Adapter Side) and 1/4 NPT (Gauge Side) female fittings
1/8″ NPT Fuel Pressure Testing Adapter Elbow Fitting
1/4″ NPT Fitting mounted on bottom of gauge
Large 2-1/2″ (63mm) gauge face for easy reading
Stainless Steel Case and Bezel
Liquid Filled – dampens pulsing and vibrations for more accurate readings

Additional information

Weight	2.0 lbs
Dimensions	5 × 5 × 5 in
Engine	1982 – 1996 1.5/1.6L, 1983 – 1994 6.9L & 7.3L IDI, 1983 – 2000 GM 6.2L & 6.5L Turbo Diesel, 1988 – 1993 5.9L Cummins, 1994 – 1997 7.3L Power Stroke, 1994 – 1998 5.9L Cummins, 1997 – 2006 1.9L TDI, 1998 – 2002 5.9L Cummins, 1998 – 2003 7.3L Power Stroke, 2000 – 2003 2.7L OM 612, 2001 – 2004 6.6L Duramax LB7, 2003 – 2007 5.9L Cummins, 2003 – 2007 6.0L Power Stroke, 2004 – 2005 6.6L Duramax LLY, 2004 – 2006 2.7L OM 647, 2006 – 2007 6.6L Duramax LBZ, 2007 – 2010 6.6L Duramax LMM, 2007 – 2017 3.0L OM 642, 2007 – 2024 6.7L Cummins, 2008 – 2010 6.4L Power Stroke, 2009 – 2014 2.0L TDI, 2011 – 2016 6.6L Duramax LML LGH, 2011 – 2024 6.7L Power Stroke, Mid-Range / Heavy Duty, Navistar / Int
